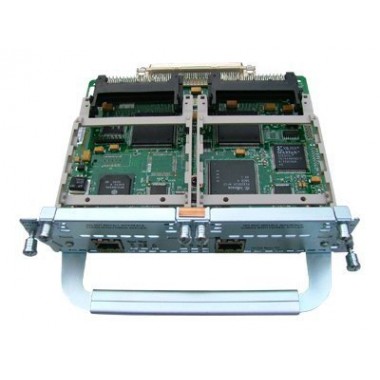

Cisco NM-2FE2W 2x 10/100 Ethernet 2 WAN Card Slot Network Module
This mixed-media network module has two full/half duplex, auto-sensing 10/100 Ethernet port and 2 WAN Interface Card (WIC) expansion slots, supporting all current WICs and VWICs. The 10/100 Ethernet connections are via RJ-45 connectors.
Modular Router Solutions: LAN-to-LAN Routing, VPN & Firewall Solutions, DSL Access, Dialup Remote Access, ISDN Concentration, Serial & Legacy Concentration The Maximum Number of NMs that can be utilized in each of the 2600/3600 families is as follows:, 2691: 1, 3620: 2, 3640: 4, 3660: 6, 3725: 2, 3745: 4 Protocols supported:, Full Cisco IOS software as of 12.0(7)XK WIC Performance:, Up to 8Mb/s per WIC (with just 1 WIC installed) , Uses the same Fast Ethernet controller as all other Cisco 2600/3600 Fast Ethernet ports, WICs are not hot swappable. The network modules support hot swap in the Cisco 3660., Supports a maximum of two channel groups per VWIC, Does not support ISDN PRI, Does not support Fast EtherChannel Comments:, No reliance on other network modules, WAN interface cards, voice interface cards, or advanced integration modules. Will only operate in 3600 series routers.
Manufacturer: Cisco Systems, Inc
Manufacturer Part Number: NM-2FE2W=
Brand Name: Cisco
Product Model: NM-1FE-FX-V2
Product Name: Network Module
Product Type: Network Module
Application/Usage: Data Networking
Interfaces/Ports: 2 x 10/100Base-TX LAN
Interfaces/Ports Details: 2 x RJ-45 10/100Base-TX Auto-sensing LAN
Connectivity Media: Twisted Pair 10/100Base-TX
Data Transfer Rate: 10 Mbps Ethernet Half/Full-duplex
Data Transfer Rate: 100 Mbps Fast Ethernet Half/Full-duplex
Expansion Slots: 2 x WIC/VWIC
Status Indicators: Ethernet 10/100 Speed Indication, Link and full Duplex LEDS
MTBF: 569302 Hour
Power Consumption: 15 W Maximum @
Temperature: 32°F (0°C) to 104°F (40°C) Operating
Temperature: -13°F (-25°C) to 158°F (70°C) Non-operating
Humidity: 5% to 95% Relative Humidity
Dimensions: 1.6" Height x 7.1" Width x 7.2" Depth
Weight (Approximate): 2.50 lb Maximum
System Requirements: The minimum level of IOS is IOS 12.0(7)XK or 12.1(1)T
This Cisco NM-2FE2W 2x 10/100 Ethernet 2 WAN Card Slot Network Module is in refurbished condition and is fully guaranteed by our 90-day warranty. Please feel free to contact us regarding our inventory of refurbished Cisco networking equipment, or if you have any additional questions regarding this NM-2FE2W 2x 10/100 Ethernet 2 WAN Card Slot Network Module.
