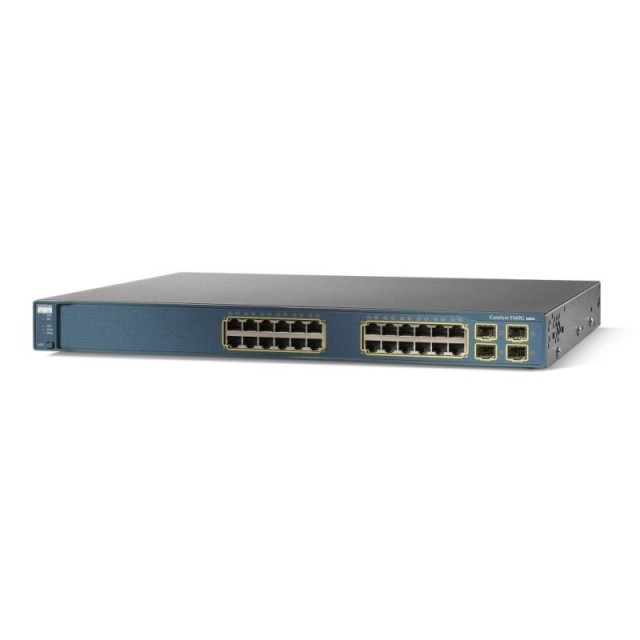

Cisco WS-C3560G-24TS-E Catalyst 3560G 24-Port 10/100/1000 + 4 SFP Enhanced Image

The Cisco Catalyst 3560 is a line of fixed-configuration, enterprise-class switch. The Cisco Catalyst 3560 is an ideal access layer switch for small enterprise LAN access or branch offices configurations for maximum productivity and investment protection while enabling the deployment of new applications such as IP telephony, wireless access, video surveillance, building management systems, and remote video kiosks. Customers can deploy networkwide intelligent services, such as advanced quality of service (QoS), rate limiting, access control lists (ACLs), multicast management, and high-performance IP routing, while maintaining the simplicity of traditional LAN switching.

Advanced IP routing, Configurable up to 11,000 unicast routes, Configurable up to 1000 IGMP groups and multicast routes, Acoustic Noise: 42dBa, DC Input Voltages (RPS Input): 10.5A, Power Rating: 0.10 kVA, Telco: Common Language Equipment Identifier (CLEI) code, Configurable maximum transmission unit (MTU) of up to 9000 bytes, with a maximum Ethernet frame size of 9018 bytes (Jumbo frames), for bridging on Gigabit Ethernet ports, and up to 1546 bytes for bridging of Multiprotocol Label Switching (MPLS) tagged frames on 10/100 ports.
QoS and Control: Advanced QoS, Granular Rate Limiting: The Cisco Committed Information Rate (CIR) function guarantees bandwidth in increments as low as 8 kbps.

Manufacturer: Cisco Systems, Inc
Manufacturer Part Number: WS-C3560G-24TS-E
Brand Name: Cisco
Product Line: Catalyst
Product Series: 3560
Product Model: 3560G-24TS-E
Product Name: Catalyst 3560 Gigabit Ethernet Switch
Product Type: Ethernet Switch
Total Number of Network Ports: 24
Number of Network (RJ-45) Ports: 24
Port/Expansion Slot Details: 4 x Gigabit Ethernet Expansion Slot
Media Type Supported: Twisted Pair
Twisted Pair Cable Standard: Category 5
Ethernet Technology: Gigabit Ethernet
Network Technology: 10Base-T
Network Technology: 10/100/1000Base-T
Number of Total Expansion Slots: 4
Expansion Slot Type: SFP
Number of SFP Slots: 4
Layer Supported: 4
Manageable: Yes
Management: SNMPv1, SNMPv2c, and SNMPv3, Telnet, policy management, Command-line interface (CLI), Resource Manager Essentials, Web-based management, Cisco Network Assistant Software, Four thousand VLAN IDs are supported, CiscoWorks network-management software, Management console port: RJ-45-to-DB-9 cable for PC connections, Service Assurance Agent (SAA) support facilitates service-level management throughout the LAN. Up to 1024 VLANs per switch or stack and up to 128 spanning-tree instances per switch are supported, Embedded Remote Monitoring (RMON) software agent supports four RMON groups (history, statistics, alarms, and events). VLAN trunks can be created from any port, using either standards-based 802.1Q tagging or the Cisco Inter-Switch Link (ISL) VLAN architecture. Remote SPAN (RSPAN) allows administrators to remotely monitor ports in a Layer 2 switch network from any other switch in the same network.
Standard Memory: 128 MB
Memory Technology: DRAM
Flash Memory: 32 MB
MTBF: 230700 Hour
Input Voltage: 110 V AC
Input Voltage: 220 V AC
Height: 1.7"
Width: 17.5"
Depth: 14.9"
Weight (Approximate): 12.00 lb
