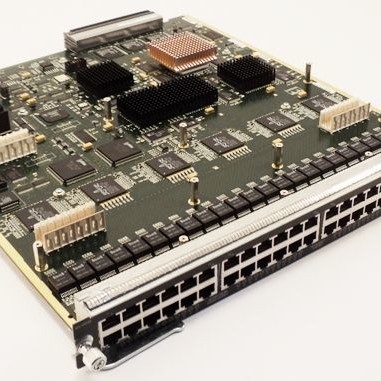

Cisco WS-X6348-RJ-45 Catalyst Inline Power 48-Port 10/100Base-T Ethernet Switching Module

The Inline Power 10/100BaseT Ethernet switching module enables the Catalyst 6000 family to be the industry's first platform to support new Fast Ethernet features necessary for campus network convergence. The Catalyst 6000 family brings data, voice, and video integration onto the campus for fully integrated communications on every desktop. Campus multiservice networking, or convergence, provides voice support using the IP network infrastructure rather than the traditional private branch exchange (PBX). This drastically increases the leverage of telephony spending into overall infrastructure spending, reduces capital and operational costs, and opens the environment to innovation by supporting new applications.

Inline Power capable module, Frame Processing: Transparent bridging (802.1d), Number of Queues per Pinnacle Port: 3 transmit, 2 receive Voice Capability: Upgradable to provide inline power via the WS-F6K-VPWR voice daughter card Features: Capacity of up to eight modules per platform, The module offers superior traffic management, with large per-interface buffers and multiple priority queues, The module offers support for multiple active MAC addresses (up to 32,000) on a switching port, Spanning-tree algorithm on logical VLANs for fault-tolerant connectivity, Capable of supporting up to 1000 VLANs

Manufacturer: Cisco Systems, Inc
Manufacturer Part Number: WS-X6348-RJ-45=
Brand Name: Cisco
Product Name: Catalyst Inline Power 10/100BaseT Ethernet Switching Module
Product Type: Switching Module
Application/Usage: Switching Network
Interfaces/Ports: 48 x 10/100Base-TX LAN
Interfaces/Ports Details: 48 x RJ-45 10/100Base-TX LAN
Connectivity Media: Category 5 UTP
Connectivity Media: 100 ohm STP
Distance Supported: 328 ft Category 5 UTP Full-duplex
Distance Supported: 328 ft 100 ohm STP Full-duplex
Data Transfer Rate: 10 Mbps Ethernet Half/Full-duplex @ 328 ft
Data Transfer Rate: 100 Mbps Fast Ethernet Half/Full-duplex @ 328 ft
Management: Network Management: ETHERLIKE-MIB (RFC 1643), IF-MIB (RFC 1573), Bridge MIB (RFC 1493), CISCO-STACK- MIB, CISCO-VTP-MIB, CISCO-CDP-MIB, RMON MIB (RFC 1757), CISCO-PAGP-MIB, CISCO-STP-Extensions-MIB, CISCO-VLAN-Bridge-MIB, CISCO-VLAN-Membership-MIB, CISCO-UDLDP-MIB, CISCO-ENTITY-FRU-CONTROL-MIB, CISCO-COPS-CLIENT-MIB, ENTITY-MIB (RFC 2037), HC-RMON, RFC1213-MIB (MIB-II), SMON-MIB
Protocols: TCP/IP
Protocols: DHCP
Memory: 128 KB Buffer Memory Per 10/100Mbps Port Installed
Status Indicators: Status, Link good, Max power
MTBF: 61360.69 Hour
Temperature: 32°F (0°C) to 104°F (40°C) Operating
Temperature: -40°F (-40°C) to 167°F (75°C) Storage
Humidity: 10% to 90% Non-condensing Relative Humidity
Altitude: -196.84 ft to 13123.32 ft Operating
Dimensions: 1.2" Height x 14.4" Width x 16.0" Depth
System Requirements: Catalyst Software 5.4 (2)
Compatibility: Catalyst 6000 switches
