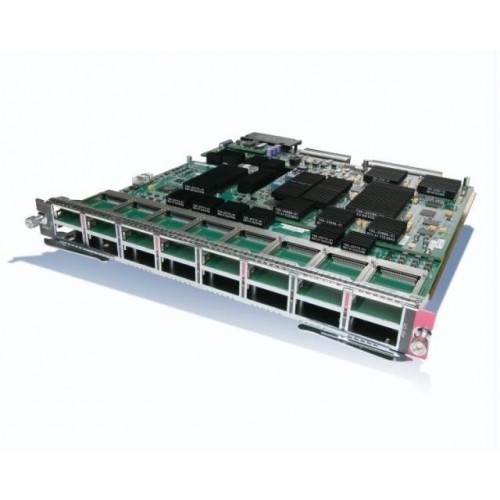

Cisco WS-X6716-10G-3C Catalyst 6000 16-Port, 10 Gigabit Ethernet Module with DFC3C (Requires X2)

The 16-port 10 Gigabit Ethernet module provides up to 130 10 Gigabit Ethernet ports in a single Cisco Catalyst 6500 chassis and 260 10 Gigabit Ethernet ports in a virtual switching system (VSS) and is targeted for LAN campus aggregation and data center access, where fanout and port density are very important. It consists of 4 port groups of 4 ports each. Users can operate each port group in either oversubcription mode (2 to 4 ports used per port group) or performance mode (1 port used per port group), allowing maximum flexibility for using some ports for connection to servers in performance mode and some other uplinks to wiring closets in oversubscription mode. When in performance mode, up to four 10 Gigabit Ethernet ports can be used to create a virtual switch link in a VSS.1 In addition, the 16-port 10 Gigabit Ethernet module has reduced power consumption.

Switch Fabric Connection: 40 Gbps (80 Gbps full duplex), Forwarding Engine: 256K routes, Maximum Port Density per VSS: 260 ports, Maximum Port Density per Chassis: 130 ports (9-slot chassis), Jumbo Frame Support for Bridged and Routed Packets: Up to 9216 bytes, Onboard Memory: 1 GB

Manufacturer: Cisco Systems, Inc
Manufacturer Part Number: WS-X6716-10G-3C
Brand Name: Cisco
Product Model: WS-X6716-10G-3C
Product Name: 16-Port 10 Gigabit Ethernet Interface Module
Product Type: Switching Module
Application/Usage: Switching Network
Data Transfer Rate: 10 Gbps Gigabit Ethernet
Expansion Slots: 16 x X2
Daughter Cards: 1 x DFC3C
Management: IEEE 802.1p QoS, IEEE 802.1q VLAN
Dimensions: 1.2" Height x 14.4" Width x 16.0" Depth
Weight (Approximate): 13.00 lb - Excluding X2s
Compatibility: Virtual Switching Supervisor Engine 720-10G, Supervisor Engine 720 with any PFC, Cisco Catalyst 6500 E-Series chassis
