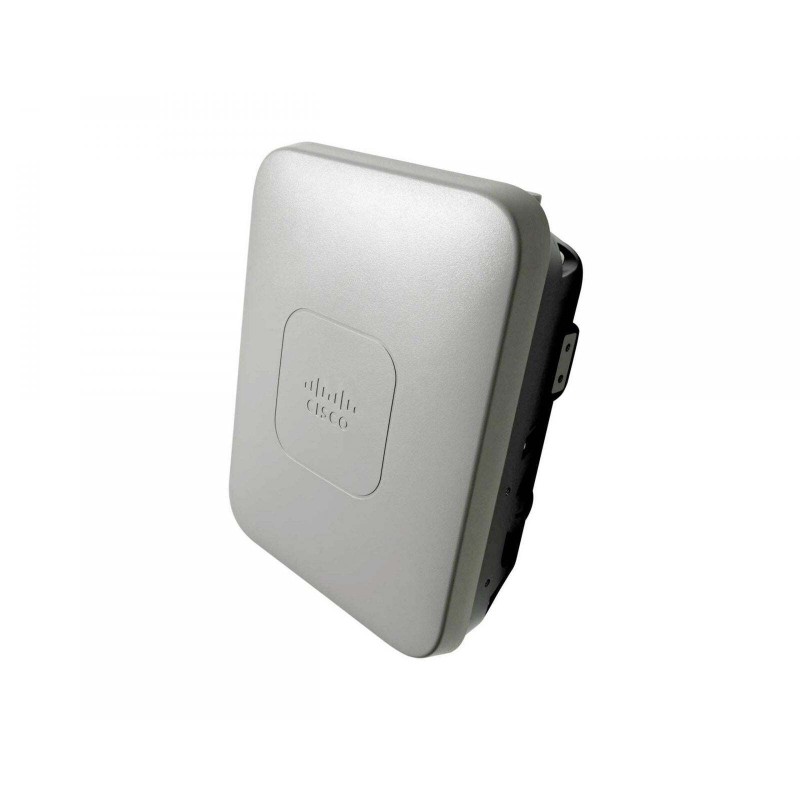

Cisco AIR-CAP1532I-A-K9 Aironet 11n Low Profile Outdoor Wireless Access Point AP Internal Antenna A Reg Dom

Sleek, Innovative, Flexible, Proven

As carrier-grade Wi-Fi becomes a critical small-cell element in next-generation mobile networks, operators are requesting new access point designs that can pack a punch in a small form factor. The Cisco(R) Aironet(R) 1530 Series Outdoor Access Points incorporate a low-profile design that is esthetically pleasing, yet they can withstand the most rugged outdoor conditions. Cis co brings engineering innovation to the platform with unique Cisco Flexible Antenna Port technology that allows the same antenna ports to be used either for dual-band antennas to reduce the antenna footprint or for single-band antennas to optimize radio coverage. This flexibility allows antenna changes to be made on the fly, and saves on sparing costs. And the Cisco Aironet 1530 Series brings all the same robust Wi-Fi features that operators have come to expect from Cisco, including radio resource management, BandSelect to automatically take advantage of the 5-GHz band, and VideoStream for high-quality video performance over Wi-Fi. Only Cisco delivers all of these features in a hardened outdoor access point that is ideal for any urban setting.

Product Name: 802.11N LP Outdoor AP Int Antenna A Reg DOM
Product Type: Wireless Access Point
Ethernet Port: Yes
Fast Ethernet Port: Yes
Gigabit Ethernet Port: Yes
10Gigabit Ethernet Port: No
Wi-Fi Standard: IEEE 802.11n
ISM Band: Yes
UNII Band: Yes
ISM Minimum Frequency: 2.40 GHz
UNII Minimum Frequency: 5.28 GHz
Antenna Gain: 3 dBi, 5 dBi
Antenna Type: Omnidirectional Antenna
Number of Network (RJ-45) Ports: 1
Height: 4.0"
Width: 7.0"
Depth: 9.0"
Product Series: 1530
Wireless Transmission Speed: 300 Mbps
Form Factor: Wall Mountable, Pole-mountable
Product Model: 1532I
Product Line: Aironet
ISM Maximum Frequency: 2.48 GHz
UNII Maximum Frequency: 5.83 GHz
USB: No
HDMI: No
VGA: No
Audio Line Out: No
Serial Port: No
Network (RJ-11): No
Powerline: No
Management Port: Yes
Certifications & Standards: Safety: UL 60950, CAN/CSA-C22.2 No. 60950, IEC 60950, EN 60950 Immunity: ANSI/IEEE C62.41, EN61000-4-5, EN61000-4-4, EN61000-4-3, EN61000-4-2, EN60950 Radio Approvals: FCC Part 15.247, FCC Bulletin OET-65C, RSS-210, RSS-102, AS/NZS 4268.2003, ARIB-STD 66, ARIB-STD T71, EN 300 328, EN 301 893 EMI and Susceptibility: FCC part 15.107, 15.109, ICES-003, EN 301 489-1 IEEE Standards: 802.11a, 802.11b, 802.11g, 802.11n, 802.11i, 802.1X, 802.3at
Features: MIMO Technology
Wireless Security: WPA2, WPA, AES, TKIP, EAP, EAP-PEAP, EAP-TLS, EAP-TTLS, EAP-SIM, LEAP
Power Source: AC Adapter, PoE
Product Family: Aironet 1530
