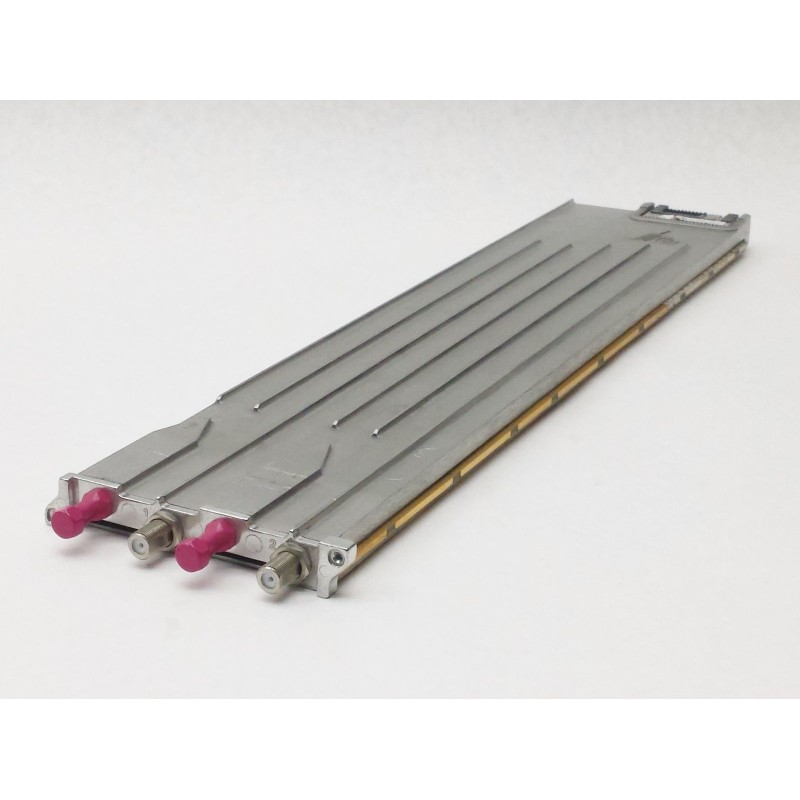

Name: NSG9000 QAM-RF-Card 48-MHz QAM RF Module
Brand: Harmonic
Price: 147.95 USD
Availability: InStock

Harmonic NSG-8R1G-01-03F NSG9000 QAM-RF-Card 48-MHz QAM RF Module

The Harmonic NSG9000 QAM-RF-Card 48-MHz QAM RF Module (part number NSG-8R1G-01-03F) delivers high performance digital modulation for cable and satellite headend applications. Designed for integration into the NSG9000 series platform, this compact RF ... Read More

price

$147.95

In Stock: 10
Manufacturer: Harmonic
Model or Part: NSG-8R1G-01-03F
Condition: Refurbished
Weight: 15.00lb

Qty

Add to Cart

Buy Now

Add to Wish List

Shipping Information

United States Shipping

Orders over $200 qualify for Free Super-Saver Shipping! We ship at our discretion via the most cost-effective method using FedEx, UPS, or USPS.

To ensure your order is processed efficiently, all shipping charges must be pre-paid at checkout. We are unable to bill directly to third-party shipper accounts or use customer-provided labels for domestic shipments.

International Shipping

International orders begin processing as soon as payment is confirmed.

Pre-paid Shipping: For your convenience, you can select and pay for international shipping directly at checkout.
Carrier Accounts: Alternatively, we can bill transport costs directly to your FedEx account number. (Note: We cannot bill to DHL, TNT, or UPS accounts).
Customer Labels: We are also happy to ship internationally using pre-paid labels provided by you for any carrier.

Expedited and Rush Shipping

Need it faster? HardwareJet.com offers 1 or 2-day expedited shipping options during checkout for eligible items.

To get your order to the front of the line, expedited orders include a small rush fee in addition to the carrier's shipping charges. If an item is not available for expedited shipping, these options will not appear in your cart.

Product Information

Item Condition

New - Sealed or Open Box Condition
Excellent - Almost-New, Missing Original Packaging
Refurbished - Seller Refurbished, Good Condition, Previously Used Item

To bring you an even wider selection, some of our items are shipped directly from our trusted partners. Delivery times may vary for these items.

Description

Overview
The Harmonic NSG9000 QAM-RF-Card 48-MHz QAM RF Module (part number NSG-8R1G-01-03F) delivers high performance digital modulation for cable and satellite headend applications. Designed for integration into the NSG9000 series platform, this compact RF card provides reliable 48 MHz QAM signal generation with low phase noise and excellent linearity, helping operators maximize bandwidth efficiency and signal quality.

Key Features

Supports 64 QAM, 256 QAM and 1024 QAM modulation formats
48 MHz RF bandwidth with configurable carrier spacing
Low phase noise performance for clean signal generation
Integrated temperature compensation for stable operation from -40 deg to +85 deg
Compact 1U form factor for easy rack mounting
Standard IPMI interface for remote monitoring and control

Technical Specifications

Model: NSG-8R1G-01-03F
Frequency range: 470 MHz to 862 MHz
Modulation: QAM 64/256/1024
Bandwidth: 48 MHz
Output power: +55 dBm typical
Spurious emission: -60 dBc or better
Power consumption: 45 W max
Operating temperature: -40 deg to +85 deg C
Interface: 1000BASE-T Ethernet, IPMI

Applications

Cable television headend equipment
Hybrid fiber coax (HFC) networks
Satellite uplink modulators
Broadband access platforms
Digital video broadcasting (DVB) transport streams
Test and measurement rigs for QAM signal analysis

By integrating the NSG9000 QAM-RF-Card into your network, you gain a versatile, high-quality RF source that simplifies system design while delivering the performance needed for modern high-definition and ultra-high-definition services.
