Polycom 7200-64510-001 Group 500 1080p EagleEye IV 4x Bundle
Polycom Group 500 Bundle
The Polycom Group 500 video conferencing bundle supports instant communications and collaboration. Share documents and edit content in real time, allowing you to improve productivity. Set up this system with your existing network infrastructure. Users can also set up this mobile devices with this system, allowing you to use a tablet or smartphone as a management tool.
The included EagleEye IV camera offers automatic 4x optical zoom. Communicate with remote participants as if they were in the same room. This system is ideal for meeting rooms of various size. Upgrade or expand the Polycom RealPresence Group 500 through available licenses, such as 1080p HD video support or MultiPoint licenses.
Polycom RealPresence Group 500 Technical Specifications:
Video Resolution: 720p @30/60fps
Video Standards: H.264, H.263, H.261
Camera Zoom: 4x optical
Dual Monitor Support: yes
Content Sharing: send/receive
MultiPoint Support: 4x HD, 6x SD (via licensing)
Voice Quality: HD audio, up to 22kHz
Protocol Support: SVC, SIP, TIP
Microsoft Lync: supported
Ethernet Connections: 1x 10/100/1000
A/V Inputs: HDCI, HDMI, VGA, 3.5mm, ConferenceLink2
A/V Outputs: 2x HDMI, 3.5mm
Auxiliary Ports: 2x USB, RS-232
Expandable: yes

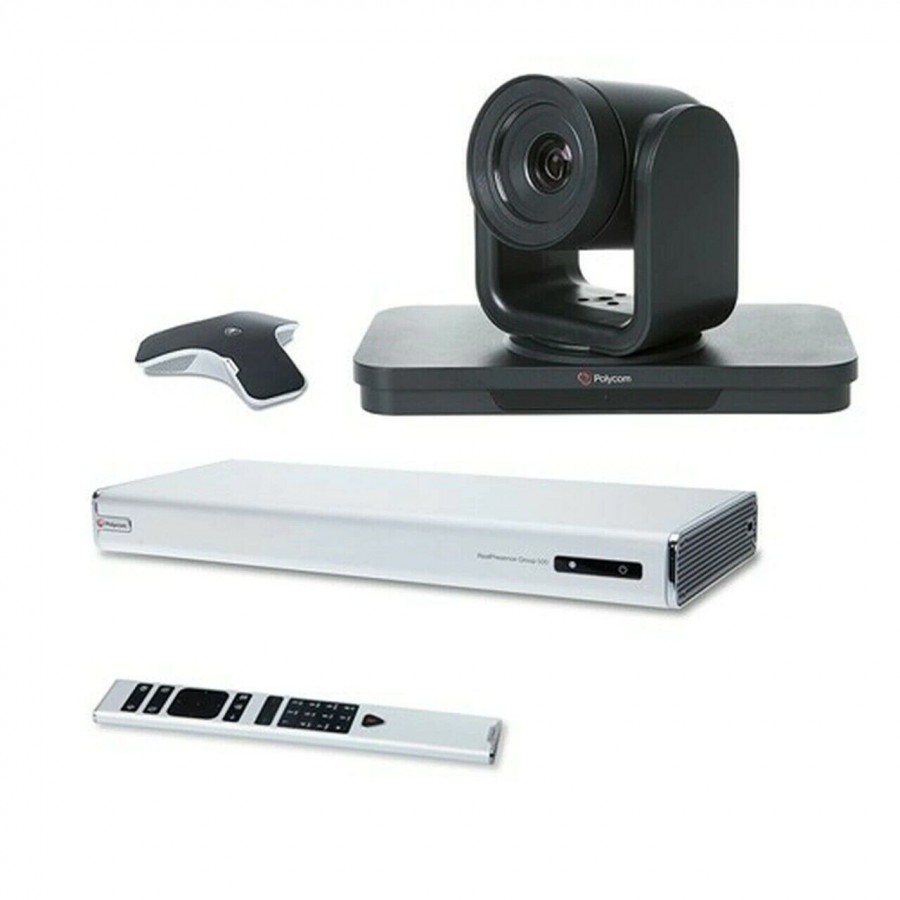

Polycom Group 500 720p EagleEye IV Bundle Contents:
Polycom Group 500 codec
EagleEye IV camera with 4x zoom
Group microphone array
Remote control
Cables
Polycom Group 500 720p Specifications
Video Specifications
Video Standards and Protocols
H.261, H.263, H.264 AVC, H.264 High Profile, H.264 SVC*, RTV
H.239 / Polycom People+Content
H.263 & H.264 Video error concealment
Video Input
1 x HDCI for EagleEye HD camera
1 x HDMI 1.3
1 x VGA
Video Out
2 x HDMI 1.3
People Video Resolution
720p, 60 fps from 832 Kbps
720p, 30 fps from 512 Kbps
4SIF/4CIF, 60 fps from 512 Kbps
4SIF/4CIF, 30 fps from 128 Kbps
SIF (352 x 240), CIF (352 x 288) from 64 Kbps
QSIF (176 x 120), QCIF (176 x 144) from 64 Kbps
w288p from 128 Kbps
w448 from 384 Kbps
w576p from 512 Kbps
Content Video Resolution
Input: HD (1280 x 720p), XGA (1024 x 768), VGA (640 x 480)
Ouput: HD (1280 x 720p), XGA (1024 x 768), VGA (640 x 480)
Content Frame Rate: 5 - 60 fps
Content Sharing: People+Content and People+Content IP
Audio Specifications
Audio Input
1 x RealPresence Group Microphone Array (supports a total of 2 microphones)
1 x HDMI
1 x 3.5mm Stereo Line-in
Audio Output
1 x HDMI 1 x 3.5mm Stereo Line-Out
Other Interfaces
2 x USB 2.0
1 x RS-232 Mini-DIN 8-Pin
Audio Standards and Protocols
22 kHz bandwidth with Polycom Siren 22 technology, AAC-LD
20 kHz bandwidth with G.719
14 kHz bandwidth with Polycom Siren 14 technology, G.722.1 Annex C
7 kHz bandwidth with G.722, G.722.1
3.4 kHz bandwidth with G.711, G.728, G.729A
Camera Specifications
Polycom EagleEye IV
SMTPE 296M 1280 x 720p60 SMPTE 274M 1920 x 1080p, 60/50
4x Optial zoom
72� FOV min
Software Specifications
Constant Clarity
Automatic gain control
Automatic noise suppression
Keyboard noise reduction
Live music mode
Instant adaptation echo cancellation
Audio error concealment
Siren Lost Packet Recovery (LRP) technology
Polycom StereoSurround technology
Network and Security Specifications
Network
1 x 10/100/1G Ethernet
Auto-MDIX
H.323 and/or SIP up to 6 Mbps
Polycom Lost Packet Recovery (LRP) technology
Reconfigurable MTU size
RS232 with API support
Microsoft Office Communications Server integration
Microsoft ICE support
Microsoft Lync support
IBM Sametime support
Security
Algorithms: SHA-1, SHA-256, AES (256-bit, CBC/OFB/counter), PRNG
Authenticated access to admin menus, web interface, and telnet API
FIPS 140-2 Validated Cryptography (Validation Certificate #918)
PKI & certificate management (TLS 1.0 and SSL 3.0)
Other Supported Standards
H.224/H.281, H.323 Annex Q, H.225, H.245, H.241, H.239, H.243, H.460
BFCP (RFC 4562)
TIP
Miscellanious Specifications
Electrical
Auto sensing power supply
Typical operating voltage/power:
125VA @ 120V @ 60 Hz
125VA @ 230V @ 60 Hz
Environmental
Operating temperature: 0 - 40� C (32 - 104� F)
Operating humidity: 15 - 80%
Non-operating temperature: -40 - 70� C (-40 - 158� F)
Non-operating humidity (non-condensing): 5 - 95%
Maximum altitude: 10,000 feet
Physical Characteristics
Group 500 Codec box:
11.3" x 1.2" x 4.8"
2.45 lbs
* Planned for future release
This Polycom 7200-64510-001 Group 500 1080p EagleEye IV 4x Bundle is in refurbished condition and is fully guaranteed by our 90-day warranty. Please feel free to contact us regarding our inventory of refurbished Polycom networking equipment, or if you have any additional questions regarding this 7200-64510-001 Group 500 1080p EagleEye IV 4x Bundle.
