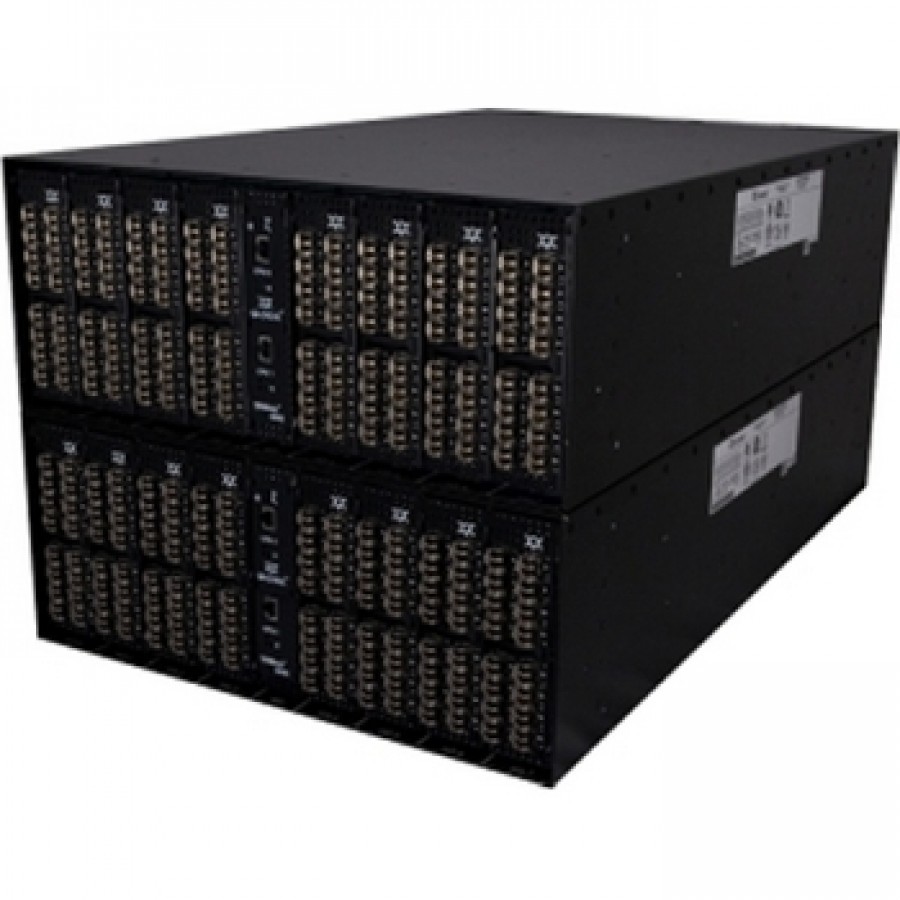

QLogic SB9200-00B Sanbox 9200 Fiber Channel Switch Chassis 2 CPU No I/O Blades
QLogic now provides a new class of core switch, representing a sane alternative to quarter-million dollar Directors and large, less resilient fixed-port switches. The SANbox SB9200-32B is Designed to the Core for cost-sensitive, business-critical, open-system environments that require high port and performance, with support for 99.999% available solutions.
Product Name: Sanbox 9200 Base Model Stackable Chassis
Product Type: Fibre Channel Switch
Number of Fiber Channel Ports: 32
Height: 7.0"
Width: 17.0"
Depth: 26.5"
Product Series: 9000
Form Factor: 4U 19" Desktop
Product Model: SB9200
Data Transfer Rate: 4.25 Gbps Fibre Channel Per Port
Product Line: SANbox
Slot Details: 32 x SFP (mini-GBIC), 8 x Expansion Slot
Expansion Slots: 32 x SFP
Interfaces/Ports Details: 4 x RJ-45 10/100Base-T Management, 2 x RS-232 Serial Management
Redundant Power Supply: Yes
Number of Power Supplies: 2
Fibre Channel Class Supported: Class 3, Class 2, Class F
Fabric Latency: < 300 ns No Contention
Laser Type Supported: Long-wavelength Laser, Short-wavelength Laser
Maximum Frame Size: 2.1 KB Payload
Management: Enterprise Fabric Suite 2007 GUI, QuickTools web applet, Application Programming Interface (API), CLI, GS-4 Management Server (including FDMI), Simple Network Management Protocol (SNMP), RADIUS, File Transfer Protocol (FTP), Trivial File Transfer Protocol (TFTP), Storage Management Initiative Specification (SMI-S)
Performance: 6.64 Gbps Point-to-Point Bandwidth Full-duplex
Scalability: Up to 128 Port Per Chassis 4Gb
Distance Supported: 984.25 ft Single-mode Copper, 5.18 Mile Multi-mode Copper
Topology: Public Loop, Switched Fabric
Fabric Supported: F_Port, FL_Port, E_Port, G_Port, GL_Port
Processor: 2 x Power PC 800 MHz
Protocols: FC-LS, FC-FS-2, FC-GS-5, FC-GS, FC-GS-2, FC-GS-3, FC-GS-4, FC-SW-2, FC-SW-3, FC-SW-4, FC-AL, FC-AL-2, FC-FLA, FC-Tape, FC-VI, FC-DA, FC-SP
Switching Method: Cut-through Routing @ 4 Gbps
Connectivity Media: 50/62.5 µm Multi-mode Optical Fiber, 9 µm Single-mode Optical Fiber
Number of Expansion Slots: 32
Product Family: SANbox 9000
This QLogic SB9200-00B Sanbox 9200 Fiber Channel Switch Chassis 2 CPU No I/O Blades is in refurbished condition and is fully guaranteed by our 90-day warranty. Please feel free to contact us regarding our inventory of refurbished QLogic networking equipment, or if you have any additional questions regarding this SB9200-00B Sanbox 9200 Fiber Channel Switch Chassis 2 CPU No I/O Blades.
