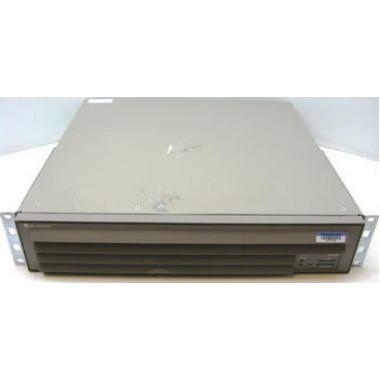

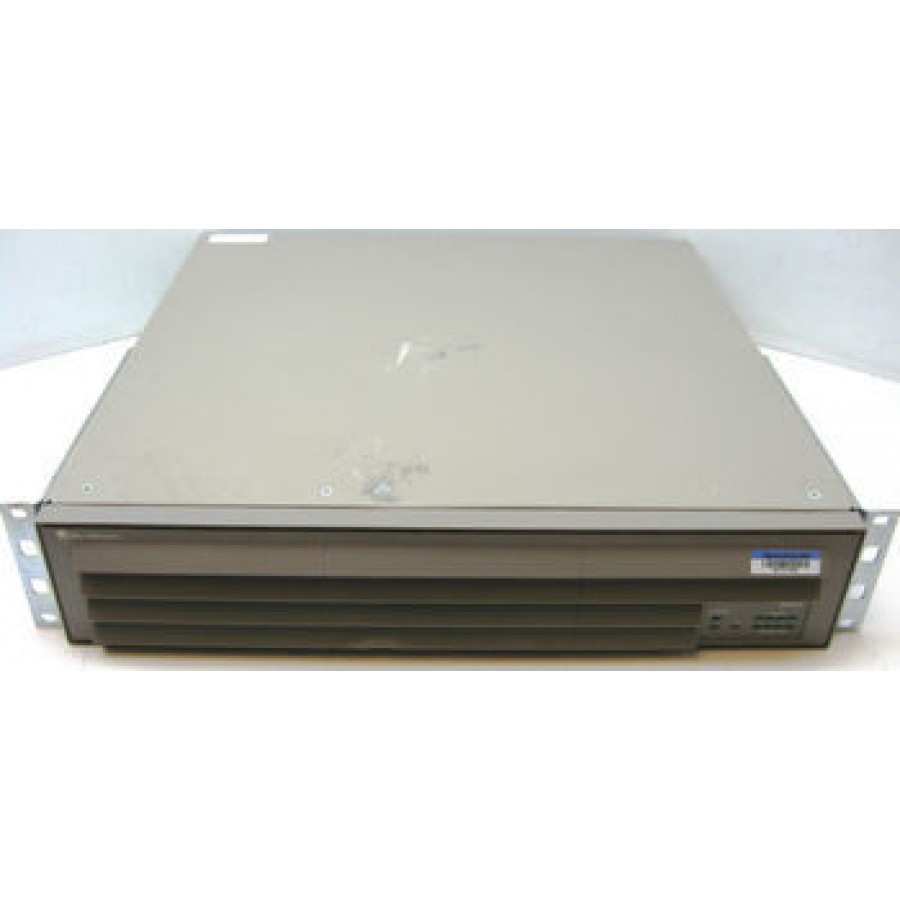

Bay Networks RPSU Redundant Power Supply Unit

Overview
The Bay Networks RPSU Redundant Power Supply Unit delivers continuous, reliable power to mission critical networking equipment. Designed as a hot-swap, fully redundant module, it ensures that a single point of failure never interrupts service, making it ideal for data centers, enterprise campuses and carrier environments.

Key Features

• Hot-swap capability - replace the unit without shutting down the system
• Dual input for true redundancy - two independent AC inputs
• Intelligent power management - automatic failover and load sharing
• Compact 1U rack-mount form factor - saves valuable rack space
• Built-in diagnostic LEDs - quick visual status of power health
• Compliance with industry standards - RoHS, FCC and CE

Technical Specifications

• Input voltage: 100 - 240 V AC
• Input frequency: 50 / 60 Hz
• Output voltage: 12 V DC
• Maximum output power: 550 W
• Efficiency: up to 92 percent
• Operating temperature: 0 to 45 degrees C
• Storage temperature: -20 to 70 degrees C
• Dimensions (H x W x D): 1.75 in x 17.5 in x 10.5 in
• Weight: 8.5 lb
• Connector type: IEC C14 input, proprietary DC output

Applications
The RPSU is suited for a wide range of networking hardware including routers, switches, firewalls and wireless controllers. It is especially valuable in environments where uptime is paramount, such as:

• Enterprise data center core and edge switches
• Service provider aggregation routers
• High-availability campus networks
• Telecom carrier equipment racks
• Critical infrastructure monitoring stations

By integrating the Bay Networks Redundant Power Supply Unit, organizations can protect their network investments, reduce downtime risk and maintain seamless connectivity for users and customers.
