Name: Fiber Optic Amplifier, C-Band Mid-Stage Optical Line Amplifier
Brand: Ciena
Price: 629.95 USD
Availability: InStock

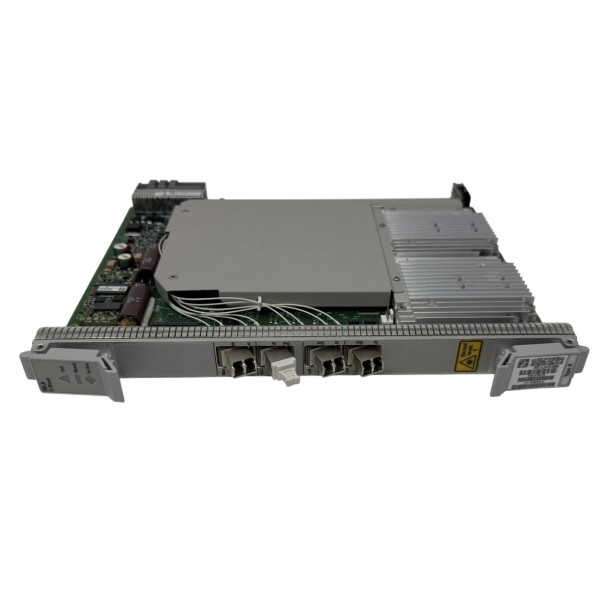

Ciena NTK552BAE5 Fiber Optic Amplifier, C-Band Mid-Stage Optical Line Amplifier

The Ciena NTK552BAE5 is a high-performance fiber optic amplifier designed for C-Band mid-stage deployment in long-haul and metro optical networks. Engineered to boost signal strength without compromising noise performance, this amplifier enables serv... Read More

price

$629.95

Same day shipping available.

In Stock: 49
Manufacturer: Ciena
Model or Part: NTK552BAE5
Condition: Refurbished
Weight: 12.00lb

Qty

Add to Cart

Buy Now

Add to Wish List

Shipping Information

United States Shipping

Orders over $200 qualify for Free Super-Saver Shipping! We ship at our discretion via the most cost-effective method using FedEx, UPS, or USPS.

To ensure your order is processed efficiently, all shipping charges must be pre-paid at checkout. We are unable to bill directly to third-party shipper accounts or use customer-provided labels for domestic shipments.

International Shipping

International orders begin processing as soon as payment is confirmed.

Pre-paid Shipping: For your convenience, you can select and pay for international shipping directly at checkout.
Carrier Accounts: Alternatively, we can bill transport costs directly to your FedEx account number. (Note: We cannot bill to DHL, TNT, or UPS accounts).
Customer Labels: We are also happy to ship internationally using pre-paid labels provided by you for any carrier.

Expedited and Rush Shipping

Need it faster? HardwareJet.com offers 1 or 2-day expedited shipping options during checkout for eligible items.

To get your order to the front of the line, expedited orders include a small rush fee in addition to the carrier's shipping charges. If an item is not available for expedited shipping, these options will not appear in your cart.

Product Information

Item Condition

New - Sealed or Open Box Condition
Excellent - Almost-New, Missing Original Packaging
Refurbished - Seller Refurbished, Good Condition, Previously Used Item

To bring you an even wider selection, some of our items are shipped directly from our trusted partners. Delivery times may vary for these items.

Description

OverviewThe Ciena NTK552BAE5 is a high-performance fiber optic amplifier designed for C-Band mid-stage deployment in long-haul and metro optical networks. Engineered to boost signal strength without compromising noise performance, this amplifier enables service providers to extend reach, increase capacity, and maintain signal integrity across demanding transmission distances.

Key Features

Optimized for C-Band wavelengths (1530-1565 nm) for maximum gain efficiency
Compact, rack-mountable design for easy integration into existing infrastructure
Low noise figure to preserve signal quality in mid-stage amplification points
Built-in redundancy options for high availability and network resilience
Advanced monitoring and diagnostics via standard SNMP MIBs
Energy efficient operation with reduced power consumption per watt of gain

Technical Specifications

Model/Part Number: NTK552BAE5
Operating wavelength range: 1530 nm to 1565 nm
Typical gain: 20 dB to 30 dB (adjustable)
Noise figure: less than 5 dB
Output power: up to 20 dBm
Polarisation mode dispersion: less than 0.1 ps/km
Input power range: -10 dBm to 0 dBm
Supply voltage: 100 to 240 V AC, 50/60 Hz
Power consumption: approx 150 W at full load
Dimensions: 19 inch rack unit, 2U height
Operating temperature: 0 deg to 45 deg C
Storage temperature: -40 deg to 70 deg C

Applications

Mid-stage amplification in long-haul backbone networks
Capacity expansion for metro and regional transport systems
Support for high-speed coherent and non-coherent services
Network upgrades requiring low noise, high gain solutions
Redundant amplification paths in carrier-grade deployments
Enabling reach extension for submarine and terrestrial fiber links

By integrating the Ciena NTK552BAE5 into your optical transport architecture, you gain a reliable, high-gain solution that maximizes bandwidth utilization while reducing operational costs. Its robust design and flexible features make it an ideal choice for modern, data-intensive networks.
