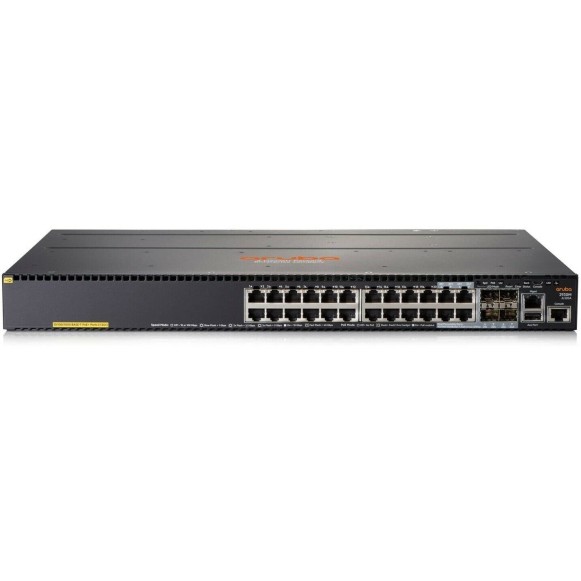

HP 2930M-24G JL320 Aruba 2930-Meter 24G PoE+ 1-Slot Switch

Overview

The HP JL320 Aruba 2930-Meter 24G PoE+ 1-Slot Switch (model 2930M-24G) delivers reliable, high-performance networking for small to medium sized enterprises and branch offices. With 24 Gigabit Ethernet ports, full Power over Ethernet Plus support, and a single expansion slot, this switch provides the flexibility to grow as your network demands increase. Its intuitive web interface and robust security features make deployment and management straightforward, while the energy efficient design helps reduce operating costs.

Key Features

• 24 Gigabit Ethernet ports with PoE+ (up to 30W per port)
• One expandable slot for optional uplink or stacking modules
• Layer 2 switching with static routing, VLANs and ACLs
• Integrated security with DHCP snooping, IP source guard and dynamic ARP inspection
• User-friendly web based management and command line interface
• Energy efficient design meets IEEE 802.3az standards
• Compact 1U rack mount form factor

Technical Specifications

• Model number: 2930M-24G
• Port configuration: 24 x RJ45 10/100/1000BASE-T, PoE+ capable
• Power budget: up to 370W total PoE power
• Uplink options: 1 x SFP slot (optional modules)
• Switching capacity: 56 Gbps
• Forwarding rate: 41.7 Mpps
• Operating temperature: 0 to 40 degrees Celsius
• Dimensions: 44.5 mm height, 440 mm width, 210 mm depth
• Weight: approx 3.2 kg

Typical Applications

• Office workstations and desktop computers
• IP phones, wireless access points and security cameras requiring PoE+
• Small server rooms and network closets
• Branch office connectivity to a central data center
• Conference rooms and collaborative spaces with high bandwidth needs
