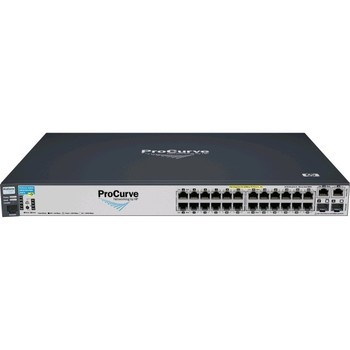

HP J9087A ProCurve Switch 2610-24-PWR 10/100 Ethernet Switch

The HP 2610 Switch Series consists of five switches. The HP 2610-24 and 2610-48 Switches provide 24 and 48 ports of 10/100 connectivity. The HP 2610-24 Switch is a fanless switch with quiet operation, making it ideal for deployments in open spaces. The HP 2610-24-PPoE, 2610-24-PoE, and 2610-48-PoE Switches are IEEE 802.3af compliant for Power over Ethernet (PoE) and provide up to 15.4 W for 12, 24, and 48 ports. The 2610-24-PPoE switch has 24 10/100 ports and provides 12 ports of PoE. All series switches include two 10/100/1000BASE-T ports and two mini-GBIC slots for Gigabit Ethernet uplink connectivity. An optional redundant external power supply is also available to provide redundancy in the event of a power supply failure. With static routing, robust security and management features, and free software updates, the HP 2610 Switch Series is a cost-effective solution for customers who are building converged enterprise edge networks.

Product Name: HP 2610-24-PoE Switch
Product Type: Ethernet Switch
Manageable: Yes
Compatible Rack Unit: 1U
Ethernet Technology: Fast Ethernet, Gigabit Ethernet
Number of Total Expansion Slots: 2
Number of Network (RJ-45) Ports: 26
Media Type Supported: Twisted Pair
Total Number of Network Ports: 24
PoE (RJ-45) Port: Yes
Height: 1.7"
Width: 17.4"
Depth: 12.5"
Expansion Slot Type: SFP
Product Series: 2610
Form Factor: Rack-mountable, Desktop
Product Model: 2610-24
Network Technology: 10/100Base-TX, 10/100/1000Base-T
Input Voltage: 110 V AC, 220 V AC
Layer Supported: 3
Standard Memory: 128 MB
Token Ring Port: No
LRE Port: No
Redundant Power Supply: No
USB: No
Number of SFP Slots: 2
Modular: No
Management Port: Yes
Uplink Port: Yes
Bypass: No
Shared SFP Slot: No
Memory Technology: SDRAM
Certifications & Standards: IEEE 802.1p, IEEE 802.3af, IEEE 802.1d, IEEE 802.1w, IEEE 802.3ad, IEEE 802.1s, IEEE 802.1X
Management: sFlow, DHCP, VLAN, QoS, CLI, GUI
Flash Memory: 16 MB
Power Source: Power Supply
Product Family: 2610
