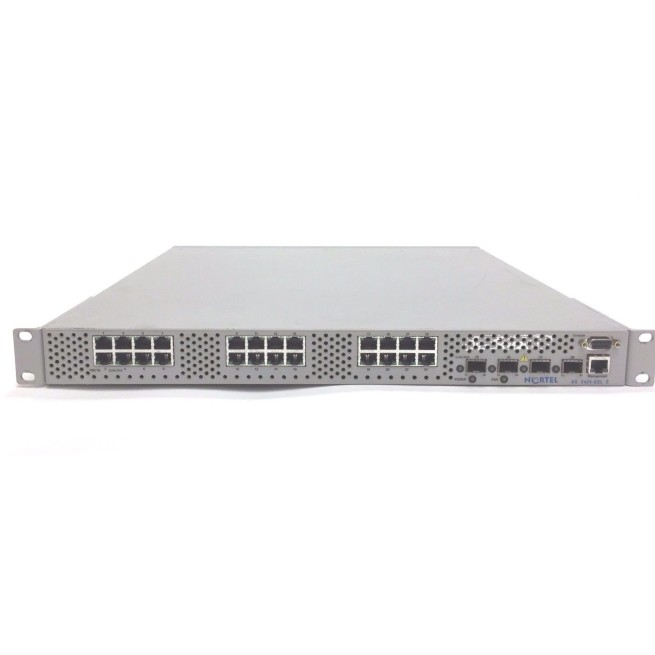

Nortel EB1412028E5 Nortel Application Switch 2424-SSL

Overview
The Nortel Application Switch 2424-SSL (part number EB1412028E5) is a high performance, secure switching solution designed for enterprise telephony and data networking environments. It provides reliable, low latency connectivity for voice, video and data applications while integrating robust SSL encryption to protect sensitive traffic. This switch is built to meet the demanding requirements of modern businesses that need both speed and security in a single, easy to manage platform.

Key Features

• Full duplex 10/100/1000 Mbps Ethernet ports for flexible bandwidth allocation
• Integrated SSL support for secure data transmission without additional hardware
• Advanced QoS controls to prioritize voice and video streams
• Plug and play installation with auto configuration for rapid deployment
• Redundant power supply options for increased reliability
• Compact rack mount design to save space in crowded server rooms

Technical Specifications

• Model: 2424-SSL
• Port count: 24 Ethernet ports
• Supported speeds: 10/100/1000 Mbps per port
• SSL protocol support: TLS 1.2 and above
• Switching capacity: up to 48 Gbps
• Forwarding rate: up to 35 Mpps
• Power: 100-240 V AC, dual redundant power supplies optional
• Operating temperature: 0 to 40 degrees Celsius
• Dimensions: 44 mm height (1U), 440 mm width, 300 mm depth

Applications
The Nortel Application Switch 2424-SSL is ideal for:

• Corporate office telephony systems that require secure voice over IP
• Data centers needing high speed, secure Ethernet connectivity
• Video conferencing rooms where low latency and encryption are critical
• Branch office networks that must integrate with central security policies
• Hospitality and education environments that manage large numbers of simultaneous connections

With its blend of performance, security and ease of use, the Nortel 2424-SSL delivers a dependable foundation for any organization looking to modernize its network infrastructure.
