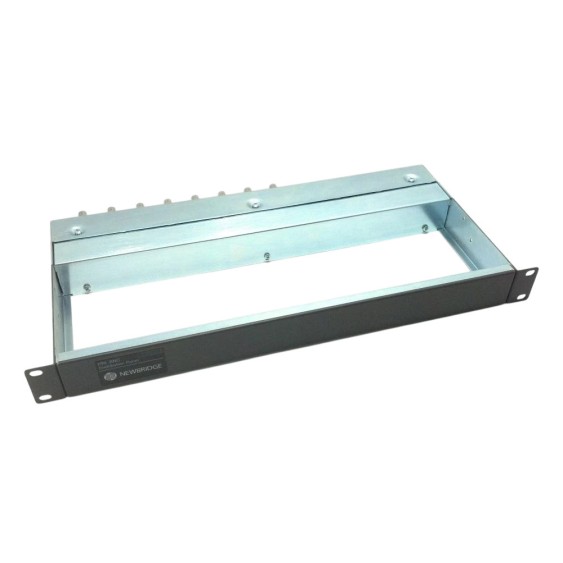

Alcatel 90-6465-01 ASC Dual Quad E1 Distribution Panel with 8 E1 Ports

Elevate your telecommunications infrastructure with the Alcatel ASC Dual Quad E1 Distribution Panel, part number 90-6465-01. This high-performance interface module is meticulously designed for carrier-grade telecommunications equipment, ensuring robust and reliable operation in the most demanding environments. It provides four E1 (2.048 Mbps) channels per port and supports dual port operation, making it an ideal solution for dense voice and data aggregation in central office, enterprise, and service provider environments. Built to Alcatel's renowned standards of reliability and ease of maintenance, this module delivers consistent performance with minimal power consumption and hot-swap capability, ensuring seamless network operation and maximum uptime for your critical services.

Key Features

• Dual port configuration with four E1 channels per port: Achieve exceptional density and flexibility, providing a total of 8 E1 channels to streamline your network architecture and expand capacity.
• Full compliance with ITU-T G.703 and G.704 standards: Guarantees interoperability and adherence to global telecommunications specifications, ensuring seamless integration into existing systems and future-proofing your investment.
• Hot-swap ready for non-disruptive maintenance: Minimize downtime and maintain continuous service delivery with the ability to replace modules without interrupting live traffic, enhancing network resilience.
• Low power draw for efficient rack utilisation: Reduce operational costs and environmental impact while maximizing the efficiency of your valuable rack space, leading to a greener and more economical solution.
• Robust metal chassis for high shock and vibration resistance: Engineered for durability, ensuring long-term reliability and consistent performance even in challenging physical conditions.
• LED status indicators for quick visual diagnostics: Facilitate rapid troubleshooting and status monitoring, simplifying maintenance and reducing diagnostic time for network administrators.

Technical Specifications

Designed for optimal performance and integration, the Alcatel ASC Dual Quad E1 offers the following precise technical specifications:

• Interface type: E1 (2.048 Mbps)
• Number of channels: 8 E1 (4 per port)
• Signal level: 2.0 V peak to peak
• Clock source: Internal with external sync option
• Power supply: 12 V DC, typical consumption 6 W per module
• Dimensions: 3U rack height, 19 inch rack width
• Operating temperature: 0 to 55 deg C
• Storage temperature: -20 to 70 deg C
• Humidity: 10 to 90 percent non condensing

Applications

The ASC Dual Quad E1 is a versatile solution, perfectly suited for a wide range of critical telecom scenarios, enabling enhanced connectivity and performance across various sectors:

• Voice over IP gateway aggregation: Efficiently consolidate multiple VoIP channels, optimizing bandwidth and service delivery for clear and reliable voice communications.
• Private branch exchange (PBX) trunking: Expand and manage your PBX systems with reliable E1 connectivity for seamless internal and external communications, supporting business growth.
• Carrier network backhaul and interconnect: Provide robust and high-capacity links for core network operations and inter-carrier connections, ensuring the backbone of your network is strong.
• Enterprise unified communications platforms: Integrate E1 lines into your unified communications strategy, supporting voice, data, and video services for a comprehensive communication ecosystem.
• Remote office connectivity via E1 leased lines: Establish secure and dependable connections for distributed offices, ensuring consistent communication and data transfer across geographical boundaries.
• Test and measurement equipment requiring reliable E1 interfaces: Utilize for precision testing and monitoring where stable and compliant E1 interfaces are paramount for accurate diagnostics and performance verification.

By integrating the Alcatel ASC Dual Quad E1 into your infrastructure, you gain scalable channel capacity, simplified maintenance, and dependable performance that meets the demanding needs of modern telecommunications networks. Invest in a solution that ensures your network remains agile, efficient, and future-ready.
