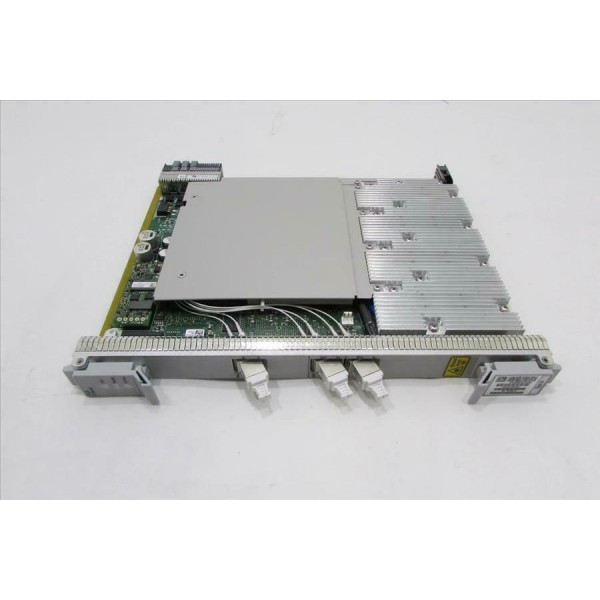

Ciena NTK552KA Opt Line Amplifier

Overview

The Ciena NTK552KA Opt Line Amplifier is a high performance, carrier grade solution designed to boost optical signal strength over long haul fiber links. Engineered for reliability and low power consumption, this amplifier delivers consistent gain while maintaining signal integrity in dense wavelength division multiplexing (DWDM) environments. Its compact form factor and modular design make it easy to integrate into existing network infrastructures, providing operators with a flexible tool to extend reach and increase capacity.

Key Features

• High gain flatness across a wide optical bandwidth
• Automatic gain control for dynamic traffic conditions
• Low noise figure to preserve signal quality
• Redundant power supplies for uninterrupted operation
• Modular hot-swap design for quick maintenance
• Built-in monitoring and diagnostics via SNMP and CLI
• Compact 2U rack-mount chassis

Technical Specifications

• Operating wavelength range: 1525 nm to 1565 nm
• Maximum output power: +22 dBm per channel
• Gain: 20 dB typical, adjustable +/- 3 dB
• Noise figure: < 5 dB
• Polarization mode dispersion: < 0.1 ps/ sqrt(km)
• Input power range: -30 dBm to 0 dBm per channel
• Power consumption: 120 W typical, 150 W max
• Temperature operating range: 0 deg C to 45 deg C
• Dimensions: 19 inch rack, 2U height
• Interfaces: 2 fiber ports, 2 Ethernet management ports

Applications

• Long haul and metro optical transport networks
• DWDM systems requiring extended reach and higher OSNR
• Carrier and service provider backbone upgrades
• Enterprise campus interconnects with high bandwidth demand
• Data center interconnects spanning multiple sites
• Disaster recovery links where signal stability is critical

By delivering robust amplification with advanced control features, the Ciena NTK552KA Opt Line Amplifier helps network operators maximize fiber utilization, reduce latency, and maintain high quality of service across their optical infrastructure.
