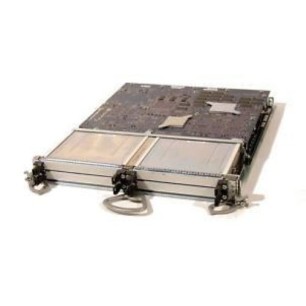

Cisco 12000-SIP-601 Multirate 10G IP Service-Engine Module Interface Processor

This Cisco XR 12000 and 12000 series SPA Interface Processor 601 provides a common forwarding and queuing engine responsible for packet classification, forwarding decisions, packet queuing, and accounting without compromising the performance. It has two forwarding engines, one for ingress and one for egress, allowing the user to implement multiple features and QoS policies at the incoming traffic, independently from the features and the QoS policies applied at the egress interfaces. The multicast replication is done by the egress forwarding engine, hence a very scalable multicast implementation with a native and built-in security and QoS features for multicast flows.

Spare Product. Features: Online insertion and removal (OIR) enabling insertion and removal of line cards without affecting traffic, Multirouter automatic protection switching (MR-APS), Layer 3 nonstop forwarding (NSF) and stateful switchover (SSO), High number of IPv4, IPv6, Multiprotocol Label Switching (MPLS), and MPLS VPN unicast and multicast routes, Filtering on source or destination IP addresses, on transport protocols, or at input or output interfaces, Output queuing: 8192 MDRR queues dynamically shared across all SPAs, Supports Cisco IOS version 12.0(32)S or higher

Product Name: Multirate 10G Ip Service-Engine Module
Product Type: Interface Processor
Dimensions: 1.8" Height x 16.0" Width x 20.6" Depth
Expansion Slots: 4 x Port Adapter
Application/Usage: Data Networking
Management: Command-line Interface, Management Information Base. Management Protocols: Cisco Discovery Protocol, Simple Network Management Protocol
