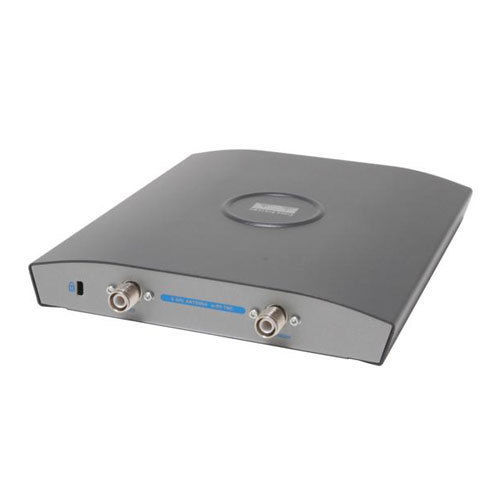

Cisco AIR-AP1242AG-A-K9 Aironet 802.11a/b/g Wireless Access Point

Cisco Aironet 1232AG 802.11a/b/g Wireless Access Point delivers the versatility, high capacity, security, and enterprise-class features demanded by WLAN customers. It is designed specifically for challenging RF environments like factories, warehouses, and large retail establishments that require the antenna versatility associated with connectorized antennas, a rugged metal enclosure, and a broad operating temperature range. It extends the security, scalability, reliability, ease of deployment, and manageability available in wired networks to the wireless infrastructure.

Running Cisco IOS Software, makes the Access Point supports link role flexibility which provides both access point and bridge functionality through configuration of each radio as an access point, repeater, root bridge, non-root bridge, or workgroup bridge. This configuration flexibility enables the Access Point to address applications ranging from basic wireless LAN coverage to wireless LAN coverage with wireless backhaul to more traditional bridging applications. The access point without wired connection will use the 5-GHz radio to wirelessly connect to the other access point for backhaul to the network.

Software: Cisco IOS Software Release 12.3(7)JA or later, Memory: 32 MB RAM, 16 MB flash, Processor: IBM PowerPC405 (200 MHz), Two RP-TNC connectors 802.11g or 802.11a approved, Provides Link Role Flexibility when running Cisco IOS Software, Can be powered by 802.3af PoE, Cisco inline power switches, single port power injectors, or local power

Manufacturer: Cisco Systems, Inc
Manufacturer Part Number: AIR-AP1242AG-A-K9
Brand Name: Cisco
Product Line: Aironet
Product Series: 1240AG
Product Name: Aironet 1242AG Access Point
Product Type: Wireless Access Point
Wi-Fi Standard: IEEE 802.11a/b/g
ISM Band: Yes
UNII Band: Yes
ISM Minimum Frequency: 2.41 GHz
ISM Maximum Frequency: 2.40 GHz
UNII Minimum Frequency: 5.15 GHz
UNII Maximum Frequency: 5 GHz
Number of Antennas: 2
Antenna Gain: 2.2 dBi
Antenna Gain: 3.5 dBi
Antenna Type: Diversity Dipole Antenna
Antenna Type: Omnidirectional Antenna
Antenna Connector: RP-TNC Connector
Indoor Antenna Range: 460 ft
Outdoor Antenna Range: 950 ft
Wireless Transmission Speed: 54 Mbps
Wireless Security: UL 60950, UL 2043, CSA, WPA, WPA2, 802.11i, 802.1x, TKIP, AES
Fast Ethernet Port: Yes
Management Port: Yes
Management: Telnet, Console port management, Trivial File Transfer Protocol (TFTP), CiscoWorks Campus Manager, CiscoWorks CiscoView, CiscoWorks WLSE, CiscoWorks Wireless LAN Solution Engine (WLSE), Simple Network Management Protocol (MIB I and MIB II), CiscoWorks Resource Manager Essentials (RME), CiscoWorks Software Image Manager (SWIM)
Input Voltage: 110 V AC
Input Voltage: 220 V AC
Input Voltage: 48 V DC
Power Source: Power Supply
Form Factor: Desktop
Form Factor: Ceiling Mountable
Height: 1.1"
Depth: 8.5"
Weight (Approximate): 2.00 lb
