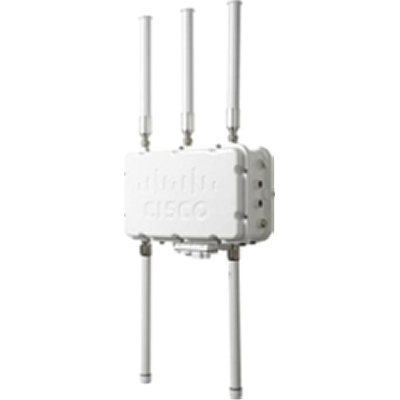

Cisco AIR-CAP1552SA-A-K9 802.11n Outdoor Access Point with isa100 Gateway AC A Reg Dom

High-Performance Outdoor Access Point for Wireless Sensor Networks

The Cisco® Aironet® 1552S Outdoor Access Point is the latest model in the Cisco Aironet 1550 Series. The 1552S merges the ruggedized outdoor 802.11n access point with an integrated, ISA100-compliant backbone router to provide a seamless solution for wireless sensor networks. The ISA100.11a radio has been designated specifically for mission-critical wireless connectivity to industrial sensor equipment. With an ISA100.11a radio integrated in an 802.11n-based access point, a single solution addresses the growing need for wireless mobility while also providing mission-critical connectivity for industrial sensing and monitoring equipment, such as gauges for water treatment plants, sensors for chemical plants, and vibration monitoring solutions for oil rigs.

Product Name: 802.11N Outdoor AP with ISA100 GTW AC
Product Type: Wireless Access Point
Ethernet Port: Yes
Fast Ethernet Port: Yes
Gigabit Ethernet Port: Yes
Wi-Fi Standard: IEEE 802.11n
ISM Band: Yes
UNII Band: Yes
ISM Minimum Frequency: 2.40 GHz
UNII Minimum Frequency: 5.25 GHz
Height: 6.4"
Width: 12.0"
Depth: 7.8"
Product Series: 1550
Wireless Transmission Speed: 300 Mbps
Form Factor: Pole-mountable
Product Model: 1552SA
Product Line: Aironet
ISM Maximum Frequency: 2.48 GHz
UNII Maximum Frequency: 5.85 GHz
USB: No
HDMI: No
VGA: No
Audio Line Out: No
Serial Port: No
Network (RJ-11): No
Powerline: No
Management Port: No
PoE (RJ-45) Port: Yes
Certifications & Standards: IP67, NEMA Type 4X, Class 1, Div 2/Zone 2, CSA: Class I, Division 2, Groups A, B, C and D, ATEX: Class I, Zone 2; Ex nA II, T5, IEEE Standards: 802.11b, 802.11g, 802.11n, 802.11a, 802.15.4, 802.11i, 802.1X, 802.3af, Safety: UL 60950, 2nd Edition, CAN/CSA-C22.2 No. 60950, 2nd Edition, IEC 60950, 2nd Edition, EN 60950, 2nd Edition, Immunity: ANSI/IEEE C62.41, EN61000-4-5 Level 4 AC Surge Immunity, EN61000-4-4 Level 4 Electrical Fast Transient Burst Immunity, EN61000-4-3 Level 4 EMC Field Immunity, EN61000-4-2 Level 4 ESD Immunity, EN60950 Overvoltage Category IV, Radio Approvals: FCC Part 15.247, 15.407, FCC Bulletin OET-65C, RSS-210, RSS-102, AS/NZS 4268.2003, EN 300 328, EN 301 893, EMI and Susceptibility: FCC part 15.107, 15.109, ICES-003, EN 301 489-1, -17
Features: MIMO Technology, Quality of Service (QoS)
Management: Cisco Prime Network Control System (NCS)
Wireless Security: AES, TLIP, IEEE 802.11i, WPA2, WPA, IEEE 802.1X, EAP (EAP-PEAP), EAP (EAP-TLS), TLS (EAP-TTLS), Cisco LEAP
Expansion Slots: SFP (mini-GBIC)
Input Voltage: 110 V AC, 220 V AC
Power Source: Power Supply
Product Family: Aironet 1550
