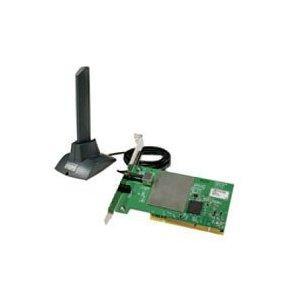

Cisco AIR-PI21AG-A-K9 802.11a/b/g Low Profile PCI Adapter FCC CNFG Wi-Fi

Whether configured to support single 802.11b coverage, single 802.11g coverage, single 802.11a coverage, dual-mode 802.11a/g coverage, or trimode 802.11a/b/g coverage, the Cisco Aironet 802.11a/b/g Wireless PCI Adapter is Wi-Fi compliant and combines the freedom of wireless connectivity with 802.11i/ Wi-Fi Protected Access 2 (WPA2) encryption for the performance, security, and manageability that businesses require.

Operating Voltage: 3.3V (0.3V), Regulatory domain: America, Compatibility: Microsoft Windows XP, Microsoft Windows 2000, LED: Status (green), Activity (amber), Receiver Sensitivity 802.11a (typical): 5.150 to 5.250 GHz: -87 dBm @ 6 Mbps, -87 dBm @ 9 Mbps, -87 dBm @ 12 Mbps, -87 dBm @ 18 Mbps, -82 dBm @ 24Mbps, -79 dBm @ 36 Mbps, -74 dBm @ 48 Mbps, -72 dBm @ 54 Mbps 5.250 to 5.350 GHz: -89 dBm @ 6 Mbps, -89 dBm @ 9 Mbps, -89 dBm @ 12 Mbps, -85 dBm @ 18 Mbps, -82 dBm @ 24 Mbps, -79 dBm @ 36 Mbps, -74 dBm @ 48 Mbps, -72 dBm @ 54 Mbps 5.725 to 5.805 GHz: -84 dBm @ 6 Mbps, -84 dBm @ 9 Mbps, -84 dBm @ 12 Mbps, -83 dBm @ 18 Mbps, -82 dBm @ 24 Mbps, -79 dBm @ 36 Mbps, -72 dBm @ 48 Mbps, -65 dBm @ 54 Mbps 5.470 to 5.725 GHz: -87 dBm @ 6 Mbps, -87 dBm @ 9 Mbps, -87 dBm @ 12 Mbps, -87 dBm @ 18 Mbps, -82 dBm @ 24 Mbps, -79 dBm @ 36 Mbps, -74 dBm @ 48 Mbps, -72 dBm @ 54 Mbps

Product Name: 802.11a/b/g Low Profile PCI Adapter FCC CNFG
Product Type: Wi-Fi Adapter
Wi-Fi Standard: IEEE 802.11a/b/g
ISM Band: Yes
UNII Band: Yes
Indoor Antenna Range: 410 ft
Outdoor Antenna Range: 2000 ft
Number of Antennas: 1
Antenna Gain: 1 dBi
Antenna Type: Dual Band Antenna
Width: 4.7"
Wireless Transmission Speed: 54 Mbps
Product Model: AIR-PI21AG-A-K9
Product Line: Aironet
Host Interface: PCI
ISM Minimum Frequency: 2.40 GHz
ISM Maximum Frequency: 2.49 GHz
UNII Minimum Frequency: 5.15 GHz
UNII Maximum Frequency: 5.85 GHz
Certifications & Standards: Cisco Compatible Wireless (based on Cisco Compatible Extensions v1.0 and v2.0), Wi-Fi, WHQL, FCC Bulletin OET-65C, RSS-102, IEEE: 802.11a, 802.11b, 802.11g, 802.11i, 802.1X, Safety: UL 60950, CSA 22.2 No. 60950, IEC 60950, EN 60950, Radio: FCC Part 15.401-15.407, RSS-210 (Canada), EN 301.893 (Europe), ARIB STD-T71 (Japan), AS 4268.2 (Australia), FCC Part 15.247, EN 300.328 (Europe), TELEC 33 and 66 (Japan), AS/NZS 3548 (Australia and New Zealand), EMI and Susceptibility (Class B): FCC Part 15.107 and 15.109, ICES-003 (Canada), VCCI (Japan), EN 301.489-1 and -17 (Europe)
Compatibility: Windows XP, Windows 2000
Device Supported: Computer
Wireless Security: Authentication: 802.1X support, including Cisco LEAP, EAP-FAST, PEAP-GTC, PEAP-MSCHAPv2), and EAP-TLS to yield mutual authentication and dynamic per-user, per-session encryption keys (WPA and WPA2), MAC address and standard 802.11 authentication mechanisms, Encryption: AES-Counter Mode with Cipher Block Chaining Message Authentication Code Protocol (CCMP) encryption (WPA2), TKIP encryption enhancements: key hashing (per-packet keying), message integrity check (MIC), and broadcast key rotation via Cisco TKIP or WPA TKIP, Support for static and dynamic IEEE 802.11 WEP keys of 40 and 128 bits
Platform Supported: PC
Product Family: Aironet
