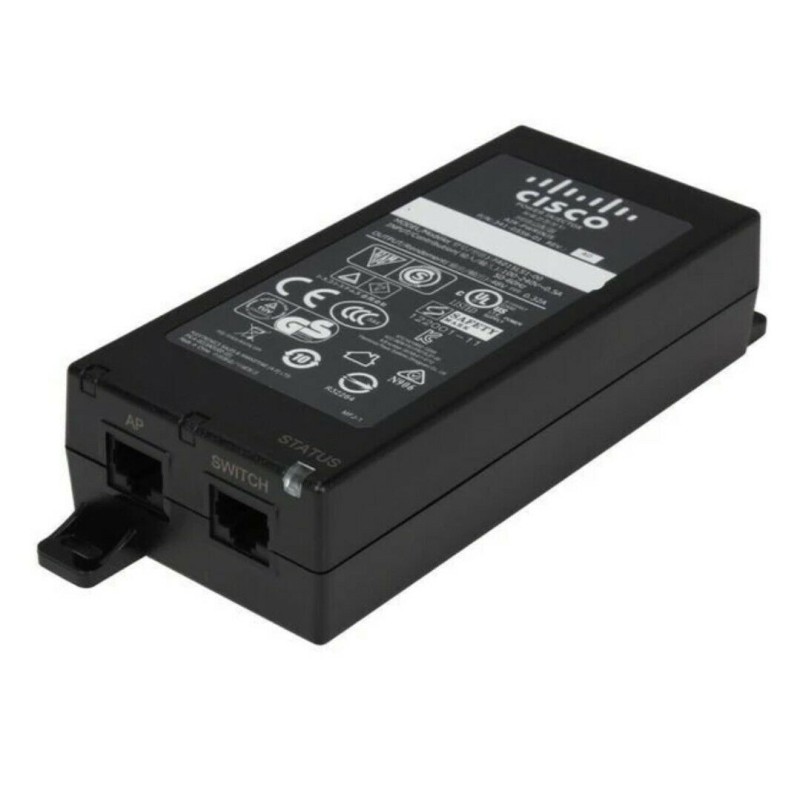

Cisco AIR-PWRINJ5 PoE Power Injector 802.3AF for AP 1600 2600 15.4 Watts

The Cisco Aironet Power Injector (AIR-PWRINJ5) increases wireless LAN deployment flexibility of Cisco Aironet Access Points by providing an alternative powering option to local power, inline power-capable multiport switches, and multiport power patch panels.

The single-port Cisco Aironet Power Injector provides 802.3af power and data signal, sending both to the Cisco Aironet Access Point.

The power injectors provide up to 15.4 W over the unused wire pairs of a Category 5 or better Ethernet cable, supplying enough power for a distance of 328 ft. (100 m) on the Cisco Aironet 1040, 1140, 1260, 2600, and 3500 Series Access Points. While it can also support the Cisco Aironet Series 3600 Access Points when modules are not being used, it is recommended to use the AIR-PWRINJ4= power injector instead for the 3600 series, as it has sufficient power to supply to the AP and any installed modules.

Product Name: Power Injector 802.3AF for AP 1600 2600
Green Compliant: Yes
Green Compliance Certificate/Authority: China RoHS
Height: 1.4"
Width: 2.6"
Certifications & Standards: IEEE 802.3af compliant, FCC Part 15.107 and 15.109 Class B, ICES-003 Class B (Canada), AS/NZS 3548 Class B, VCCI Class B, EN 301.489-1 and 17, EN 55022, EN 55024, EN 60950, UL 60950, CSA C22.2 No. 60950, IEC 60950
Input Ports: 1 x RJ-45 10/100/1000Base-T
Output Ports: 1 x RJ-45 10/100/1000Base-T
Compatibility: Cisco Aironet Access Point Series: 1040, 1140, 1260, 1600, 2600, 3500, 3600
Length: 6.5"
Input Voltage: 110 V AC, 220 V AC
Output Power: 15.40 W
Product Type: PoE Injector
Network Technology: 10/100/1000Base-T
