Cisco N7K-F132XP-15 Nexus 7000 32-Port 1G/10G Ethernet Module, SFP/SFP

The Cisco Nexus� 7000 Series 32-Port 1 and 10 Gigabit Ethernet Module offers outstanding flexibility and performance, with extensive virtualization and multipath capabilities. The module enables the deployment of high-density, low-latency, scalable data center architectures.

The Cisco Nexus 7000 Series 32-Port 1 and 10 Gigabit Ethernet Module is the first of the Cisco Nexus 7000 F-Series Ethernet modules, extending the capabilities of the Cisco Nexus 7000 Series in the data center. Powered by the F1 Forwarding Engine, the module delivers 480 million packets per second (Mpps) of distributed Layer 2 forwarding and up to 320 Gbps of data throughput through a custom dedicated forwarding application-specific integrated circuit (ASIC), enabling the creation of extensible data centers. A Cisco Nexus 7000 18-Slot Switch fully populated with Cisco Nexus 32-Port 1 and 10 Gigabit Ethernet Modules has the capability to deliver up to 10.2 terabits per second (Tbps) of switching performance, with a typical power consumption of less than 10 watts (W) per port.

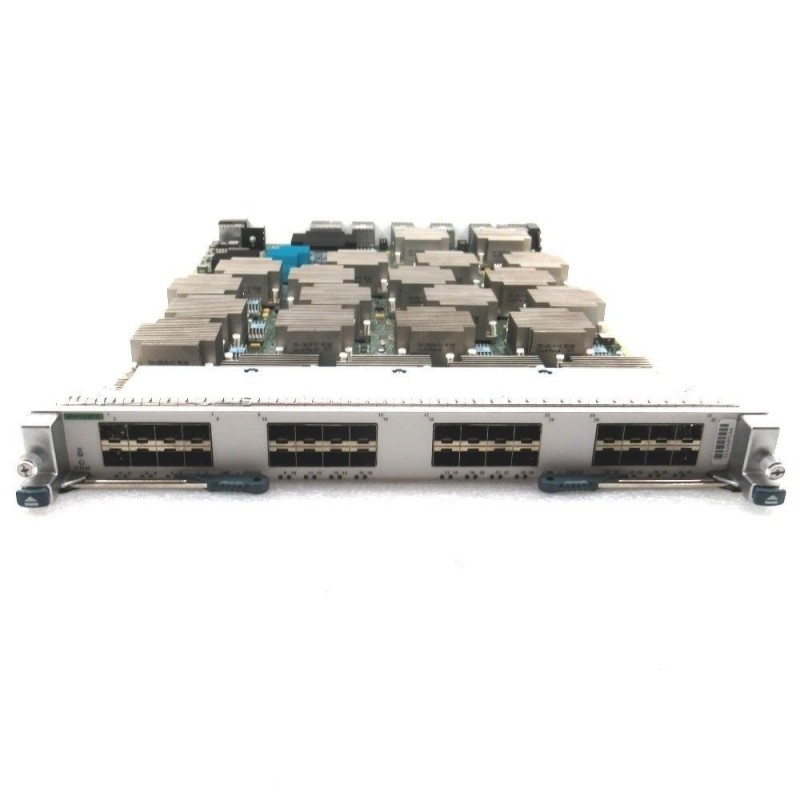

Figure 1. Cisco Nexus 7000 Series 32-Port 1 and 10 Gigabit Ethernet Fabric Module
Powerful access control list (ACL) processing supports 32,000 per module, ingress and egress, with the ACL entries addressing Layer 2, 3, and 4 fields. The F1 forwarding engine also supports applications requiring port mirroring with integrated hardware support for 16 simultaneous unidirectional switched-port analyzer (SPAN) sessions per module. Additionally, the F-series module delivers integrated Fibre Channel over Ethernet (FCoE), greatly simplifying the network infrastructure and reducing costs by enabling the deployment of unified data center fabrics to consolidate data center traffic onto a single, general-purpose, high-performance, highly available network.
