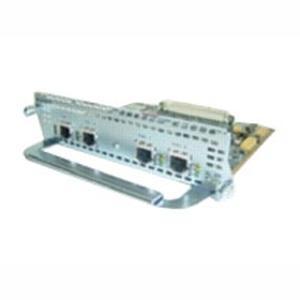

Cisco NM-CEM-4TE1 4-Port T1/E1Circuit Emulation over IP Network Module

The 4-port T1/E1 CEoIP Network Module for the Cisco 2600XM, 2691, 2811, 2821, 2851, 3660, 3700 and 3800 routers provide a new CEoIP service offering. This network modules provide bit-transparent data transport that is completely protocol-independent.

For the first time, this allows network administrators to take advantage of their existing IP network to provide leased-line emulation services, or to carry data streams or protocols that do not meet the format requirements of other multiservice platform interfaces.

Configurable clock source for each port, Optional channel associated signaling (CAS) transport, Emerging standards-based CEoIP based on Vainshtein draft with enhancements, Configurable using Cisco IOS software, Interworking between the T1/E1 and serial network modules, Bit-transparent data transport, Protocol-independent data transport, IP transport using Real-Time Transport Protocol (RTP) and UserDatagram Protocol (UDP) protocol stack, Configurable payload size, Optional payload compression, Optional data protection, Adaptive clock synthesis, Configurable egress de-jitter buffers up to 500 milliseconds Configurable idle pattern Overall network module status LEDs Per-port status LEDs

Manufacturer: Cisco Systems, Inc
Manufacturer Part Number: NM-CEM-4TE1
Brand Name: Cisco
Product Name: 4-Port T1/E1 CEoIP Network Module
Product Type: Network Module
Application/Usage: Data Networking
Interfaces/Ports: 4 x T1/E1
Interfaces/Ports Details: 4 x T1/E1
Data Transfer Rate: 1.54 Mbps T1
Data Transfer Rate: 2.05 Mbps E1
Management: T1/E1 line diagnostic loopbacks (local line, local payload, and network payload), IP quality of Service (QoS) using differentiated services code point (DSCP) or type of service (ToS) and IP Precedence
Dimensions: 1.6" Height x 7.1" Width x 7.2" Depth
Compatibility: Cisco 2610XM-2651XM, Cisco 2691, Cisco 2811, 2821, 2851, Cisco 3660, Cisco 3725, 3745, Cisco 3825, 3845
