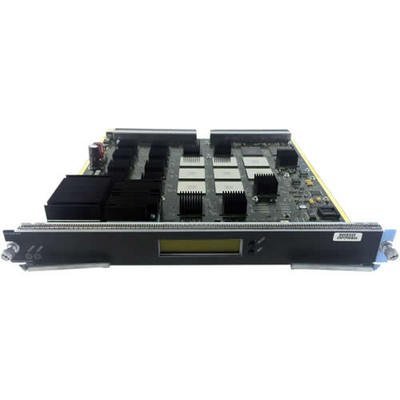

Cisco WS-C6500-SFM Catalyst 6000 Switch Fabric Module

The Switch Fabric Module delivers not only best-in-class bandwidth, but also the performance and advanced services required for today's most advanced networks.

The Switch Fabric Module enables 30 Mpps Cisco Express Forwarding (CEF)-based central forwarding on Supervisor Engine 2, The Switch Fabric Module enables up to 210 Mpps distributed forwarding on DCF-enabled switch fabric modules, The Switch Fabric Module supports advanced services such as quality of service (QoS) and security in hardware via access control lists (ACLs)

Manufacturer: Cisco Systems, Inc
Manufacturer Part Number: WS-C6500-SFM=
Brand Name: Cisco
Product Name: Switch Fabric Module
Product Type: Switch Fabric Module
Application/Usage: Data Networking
Status Indicators: Switch fabric module status, Active/standby LEDs, A 2-line by 20-character LCD
Temperature: 32°F (0°C) to 104°F (40°C) Operating
Temperature: -4°F (-20°C) to 149°F (65°C) Storage
Humidity: 10% to 85% Non-condensing Relative Humidity
Dimensions: 1.8" Height x 15.4" Width x 16.8" Depth
Weight (Approximate): 10.00 lb
System Requirements: The Switch Fabric Modules (WS-C6500-SFM and WS-X6500-SFM2) are not supported on the Catalyst 6503 switch, You cannot install the WS-C6500-SFM in a Catalyst 6513 switch, Switch Fabric Modules are not supported by Supervisor Engine 720, The Switch Fabric Module requires Supervisor Engine 2, You must install a Switch Fabric Module in either slot 5 or slot 6 of the Catalyst 6506 switch. For redundancy, you can install a standby Switch Fabric Module. The module first installed functions as the primary module. When you install two Switch Fabric Modules at the same time, the module in slot 5 acts as the primary module, and the module in slot 6 acts as the backup. If you reset the module in slot 5, the module in slot 6 becomes the primary module.
Compatibility: Catalyst 6506, Catalyst 6509, Catalyst 6509-NEB switch, Cisco 7606 Internet Router, Cisco 7609 Internet Router chassis
