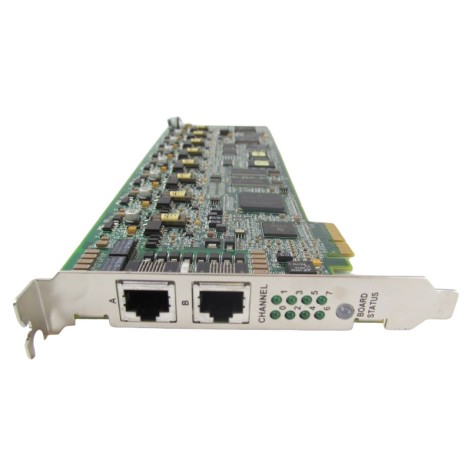

Dialogic 901-007-12 Brooktrout TR1034+E8-8L-R 8-Channel Analog V.34 Fax PCIe PC Card

Overview
The Brooktrout TR1034+E8-8L-R from Dialogic (part number 901-007-12) is a high-performance 8-channel analog V.34 fax PCIe PC card designed for enterprise telephony and fax-over-IP (FoIP) solutions. Engineered for reliability and low latency, this card delivers crystal-clear voice and fax transmission while integrating seamlessly into standard server or workstation environments via a PCI Express x1 slot.

Key Features

• Eight simultaneous analog ports for voice and fax
• Supports V.34 fax, V.32bis, V.32, V.22bis and V.22 data rates
• Full T.38 FoIP support for seamless fax over IP networks
• PCI Express x1 interface for fast data throughput and hot-swap capability
• Integrated DSP for echo cancellation, gain control and tone detection
• Compact low-profile form factor for space-constrained servers
• Compatible with major telephony platforms and software stacks

Technical Specifications

• Form factor: PCI Express x1 low-profile card
• Analog ports: 8 RJ-11 connectors (4 Tx, 4 Rx)
• Supported fax standards: V.34 (up to 33.6 kbps), V.32bis, V.32, V.22bis, V.22
• Data interface: PCI Express Gen1, 2.5 GT/s
• Power consumption: 5 W typical
• Operating temperature: 0 to 55 deg C
• Signal voltage: +/- 48 VDC line feed
• Supported operating systems: Windows Server 2019/2022, Linux (kernel 4.x and newer)

Applications
The TR1034+E8-8L-R is ideal for businesses and service providers that require robust analog fax and voice connectivity. Typical use cases include:

• Enterprise fax servers handling high volume inbound and outbound fax traffic
• Call centers needing multiple analog lines for legacy PSTN integration
• VoIP gateways that bridge analog devices to IP networks
• Government or healthcare facilities that must maintain fax compliance while moving to IP infrastructure
• Small and medium sized ISPs offering analog line services to customers

With its proven Dialogic reliability and advanced DSP features, the Brooktrout TR1034+E8-8L-R provides a cost-effective bridge between traditional analog telephony and modern IP-based communications.
